38,000kg
Operating Weight
219 / 1,900kW/rpm
Rated Power
1.7-1.9m³
Bucket Capacity
ADVANTAGES
Built to Last:
Durable, corrosion-resistant structure for long-term reliability.
Smooth Control:
Advanced hydraulics ensure precision and efficiency.
Low Maintenance:
Tough bucket teeth and blades minimize wear and costs.
Stable & Balanced:
Wide tracks provide a superior grip on any terrain.
Operator-Friendly:
Spacious cab with full visibility boosts safety and comfort.
Parameters Of Products
Detailed specifications and technical parameters for optimal performance.

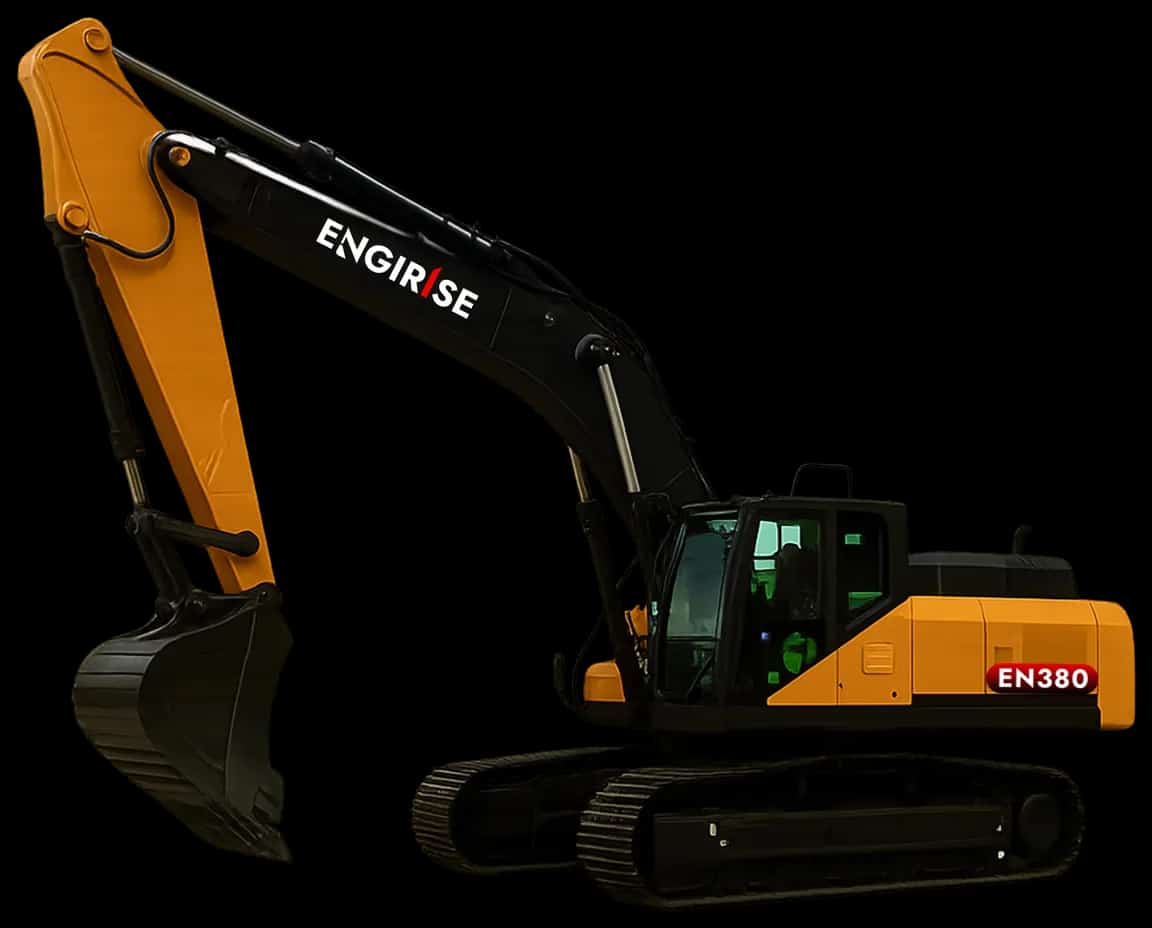

MODEL - EN380
Product SPECIFICATIONS
| Operating Weight | 38,000 | kg |
| Rated Power | 219 / 1,900 | kW/rpm |
| Bucket Capacity | 1.7-1.9 | m³ |
| Overall Length | 11,285 | mm |
| Overall Width | 3,190 | mm |
| Overall Height | 3,664 | mm |
| Swing Speed | 0 – 11 | rpm |
| Gradeability | 35 | ° |
| Digging Force | 244 | KN |
| Digging Force Of Boom | 200 | KN |
| Digging Radius | 11,178 | mm |
| Digging Depth | 7,372 | mm |
| Digging Height | 10,511 | mm |
| Dumping Height | 7,572 | mm |
| Vertical Digging Depth | 6,731 | mm |
| Hydraulic System Working Pressure | 35 | MPa |
| Swing Radius | 3,590 | mm |
| Ground Clearance | 536 | mm |
| Track Width | 600 | mm |
| Max Ground Contact Of Tracks | 4,099 | mm |
| Track Gauge | 2,590 | mm |
